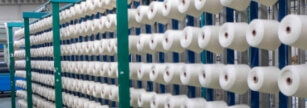

Warping Creel Model : CBR
| 1 | Pitch Distance: Horizontal x Vertical | 180X180 | 240X240 | 280X280 | 320X320 |
| 2 | No. of Tiers | 10 | 8 | 8 | 6 |
| 3 | No. of Cones in each Module | 160 | 96 | 96 | 72 |
| 4 | Range of ends | 160-960 | 96-960 | 96-960 | 72-720 |
| 5 | Creel Height | 2200 mm | 2300 mm | 2600 mm | 2500 mm |
| 6 | Module Width | 5000 mm | 5000 mm | 5000 mm | 5000 mm |

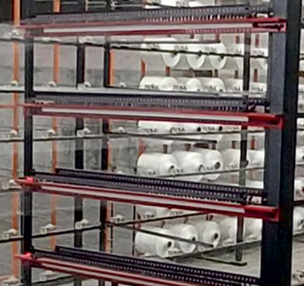

Salient Features
- M.S Fabricated, Very sturdy, Vibration free, Powder Coated Structure.

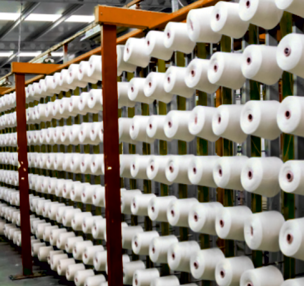

- Quick positioning of new cones by turning modular frame to 180 degree with locking facility.
- Re-creeling is possible during warping operation.
- Sufficient central passage to facilitate easy access to yarn breaks on either side quickly.

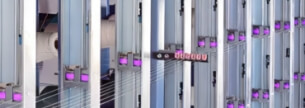

- Stop motion is equipped with Optical through beam sensor for faster response during yarn breaks.

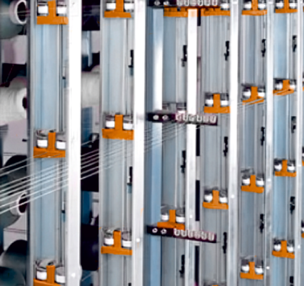

- Separate indicators on each row enables quick identification of particular yarn breakage.

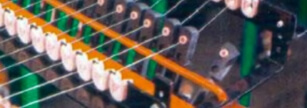

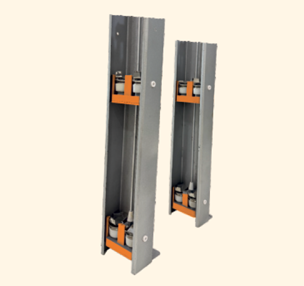

- PLC controlled, motorized, centrally controlled Tensioners to ensure uniform tension across all ends.
- Tensioners are equipped with dual acting SS spring and rotates continuously to minimize fluff deposition in sideways.
- An integrated Air blowing device can be provided optionally, which cleans the tensioner system in regular interval by blowing compressed air to remove any fluff accumulation.
